CASEN 2024 in 3 spoonfuls: without a fine-grained territorial reading, social policy moves blind

In Chile, La Araucanía records 13.0% extreme poverty; Magallanes, 4.2%. That is 8.8 percentage points of difference — and if a public agency at the central or local level (regional governments / municipalities) designs its intervention using only the national average (6.9%), or disregarding regional differences, it could get the allocation of resources or the distribution of its components wrong.

This post documents a reproducible analysis of CASEN 2024 in Julia, with cross-validation of official public figures against BIDAT and good traceability of the flow in the repo.

Three findings to start with — statistically robust:

• Extreme poverty: La Araucanía 13.0% 95% CI [11.8%, 14.1%] versus Magallanes 4.2% [3.1%, 5.2%] — a gap of 8.8 pp with non-overlapping CIs.
• FONASA coverage: La Araucanía 91.1% [90.2%, 92.0%] versus Metropolitana 75.9% [75.0%, 76.7%] — a gap of 15.2 pp with non-overlapping CIs.
• Completed higher education: Metropolitana 34.9% [34.0%, 35.7%] versus Maule 20.4% [19.2%, 21.6%] — a gap of 14.5 pp with non-overlapping CIs.

The CIs are 95% and were computed by Taylor linearization (wiki) for CASEN’s complex sampling design (stratified two-stage, expr weights). That the CIs do not overlap implies these regional differences are statistically significant at the conventional level.

---

Tolerance to contrast, or checking against official data

All results were checked against the official tables available in BIDAT.

Table 1 — Official validation results (BIDAT, CASEN 2024)

Parameter	Value
Validation status (national + regional, % + expanded)	PASS
Maximum tolerance in percentage points	1×10⁻⁵ pp
Maximum tolerance in expanded values	1×10⁻⁶
Observed difference (pp)	2.98×10⁻⁶ pp
Observed difference (expanded)	0.0
National rows compared	16
Regional rows compared	256

The maximum observed difference is below 3 millionths of a percentage point, well within tolerance 😀. The results are numerically identical to the official ones.

---

Spoonful 1: sampling design and expansion without shortcuts

CASEN 2024 has a probabilistic stratified two-stage design (BIDAT methodological note). For regional-level estimates, the correct factor is expr; for the municipal level expc is required — they are not interchangeable. This analysis uses expr and reports estimates by region with 95% CIs computed by Taylor linearization over the complex design (strata, PSU/UPM and weights/factors).

Population represented in this run (sum of expr): 20.13 million people (a pending task is to assess the impact of the new 2024 Census instead of projections over the 2017 Census).

# CASEN 2024 sampling design specification
design = (
    weight = :expr,     # regional expansion factor
    strata = :estrato,  # sampling stratum
    psu    = :cod_upm,  # primary sampling unit (PSU)
    domain = :region,   # estimation domain
)

Coverage by analyzed dimension:

Table 2 — CASEN 2024 variables used and target population

Dimension	CASEN variable	Target population
Education	educc	People ≥ 18 years
Health	s13	Total population
Poverty	pobreza	Total population

Weighted national results

The following percentages correspond to proportions weighted with expr, validated against official data in BIDAT. The difference from the official values is < 3×10⁻⁶ pp.

Table 3 — Weighted national distribution (CASEN 2024, main categories)

Dimension	Category	% national
Education	Complete secondary	30.9%
Education	Complete higher education	29.1%
Education	Incomplete higher education	12.5%
Education	Incomplete secondary	9.9%
Education	Incomplete primary	8.4%
Education	Other	7.7%
Education	No formal education	1.5%
Health	Public system FONASA	82.6%
Health	Isapre	13.2%
Health	None (private out-of-pocket)	2.0%
Health	Armed forces and police	1.8%
Health	Does not know	0.3%
Health	Other system	0.2%
Poverty	Non-poverty	82.7%
Poverty	Non-extreme poverty	10.4%
Poverty	Extreme poverty	6.9%

---

Spoonful 2: the technical flow in Julia

The pipeline runs end to end with julia --project=. scripts/run_all.jl (the orchestrator). The two most relevant pieces of code to reproduce and “audit” these results are the cell-allocation algorithm and the sampling-design specification (both in the GitLab/GitHub repository).

Taylor linearization: SE and CI of the complex design

A Taylor estimator was implemented for proportions in domains (regions). The linearized variable for the proportion $\hat{p}_d$ in domain $d$ is:

\[z_j = \frac{1(j \in d)\,(1(\text{cat}_j = C) - \hat{p}_d)}{\hat{N}_d}\]

The variance is estimated with the stratified cluster-design formula:

# Taylor linearization variance (stratified, PSU)
# e_{hi} = sum of w_j * z_j over PSU i in stratum h
var_total = sum over strata h:
    (n_h / (n_h - 1)) * sum_i (e_{hi} - mean(e_h))^2

se    = sqrt(var_total)
ci_lo = clamp(p̂ - 1.96 * se, 0.0, 1.0)
ci_hi = clamp(p̂ + 1.96 * se, 0.0, 1.0)

All PSUs of the design are used (including those outside the domain, with $z_j = 0$), which is correct for random-domain estimation. The median regional SE is 1.66 pp of CI width; the maximum is 5.76 pp (small regions with low-prevalence categories).

Next entry, at some point 👀 — Jackknife and Bootstrap for CASEN as a contrast: TSL is an optimal first-order approximation for means and proportions, but for non-linear statistics (Gini, medians, quantile ratios) it can under-estimate the variance. The code repository includes the theory and the in-progress Julia code to contrast TSL with Jackknife (delete-1) and Bootstrap — a future entry in this series, which I have not reviewed in depth.

Largest remainder: why it matters in a waffle chart

A 100-cell waffle chart requires the proportions to add up to exactly 100 whole cells. Direct rounding introduces accumulated errors that make the sum 99 or 101. This flow uses the largest remainder algorithm, which guarantees the exact sum by introducing a slight imprecision for the sake of the visualization (take it as a purely visual nicety):

"""
Allocate `n_cells` whole cells to proportions `p` using largest-remainder.
Guarantees that sum(cells) == n_cells exactly.
"""
function allocate_cells(p::AbstractVector{<:Real}, n_cells::Int = 100)
    raw    = p .* n_cells
    floors = floor.(Int, raw)
    remain = raw .- floors
    deficit = n_cells - sum(floors)
    # Assign remaining cells to the proportions with the largest remainder
    idx = sortperm(remain, rev=true)[1:deficit]
    floors[idx] .+= 1
    return floors
end

Validated with unit tests: allocate_cells([0.5, 0.3, 0.2], 100) == [50, 30, 20].

Reproducibility

# Requirements: Julia 1.10+
git clone <repo>
cd casen2024/julia_viz
julia --project=. -e "using Pkg; Pkg.instantiate()"
julia --project=. scripts/run_all.jl

The flow generates plenty of artifacts (CSV tables, PNG charts, audit logs for each input). The Manifest.toml file pins the exact versions of all dependencies (I used Julia 1.10).

---

Spoonful 3: visual evidence

National composition (Charts 1–3)

Each waffle represents 100 cells allocated by largest remainder over the weighted proportions.

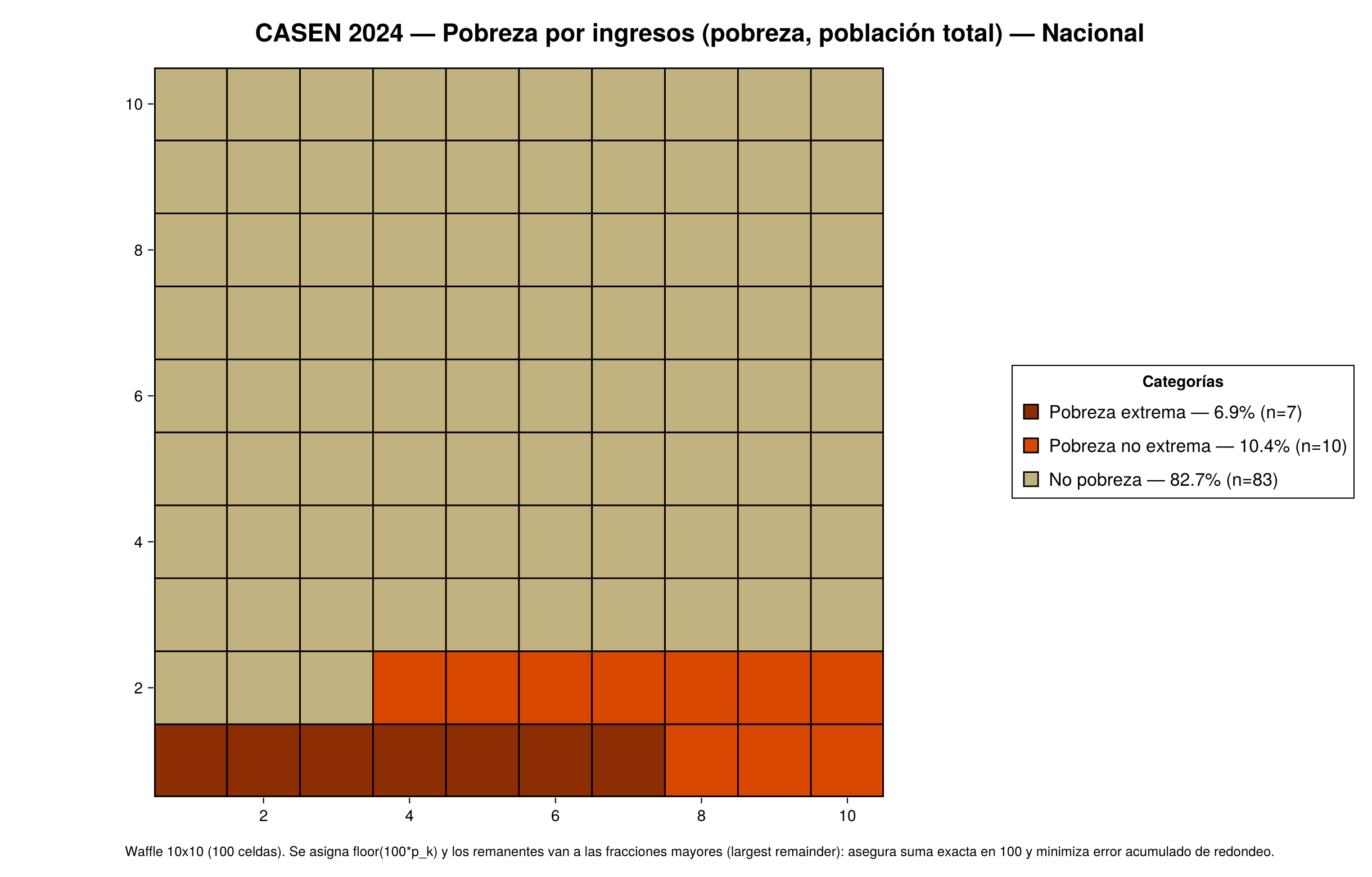

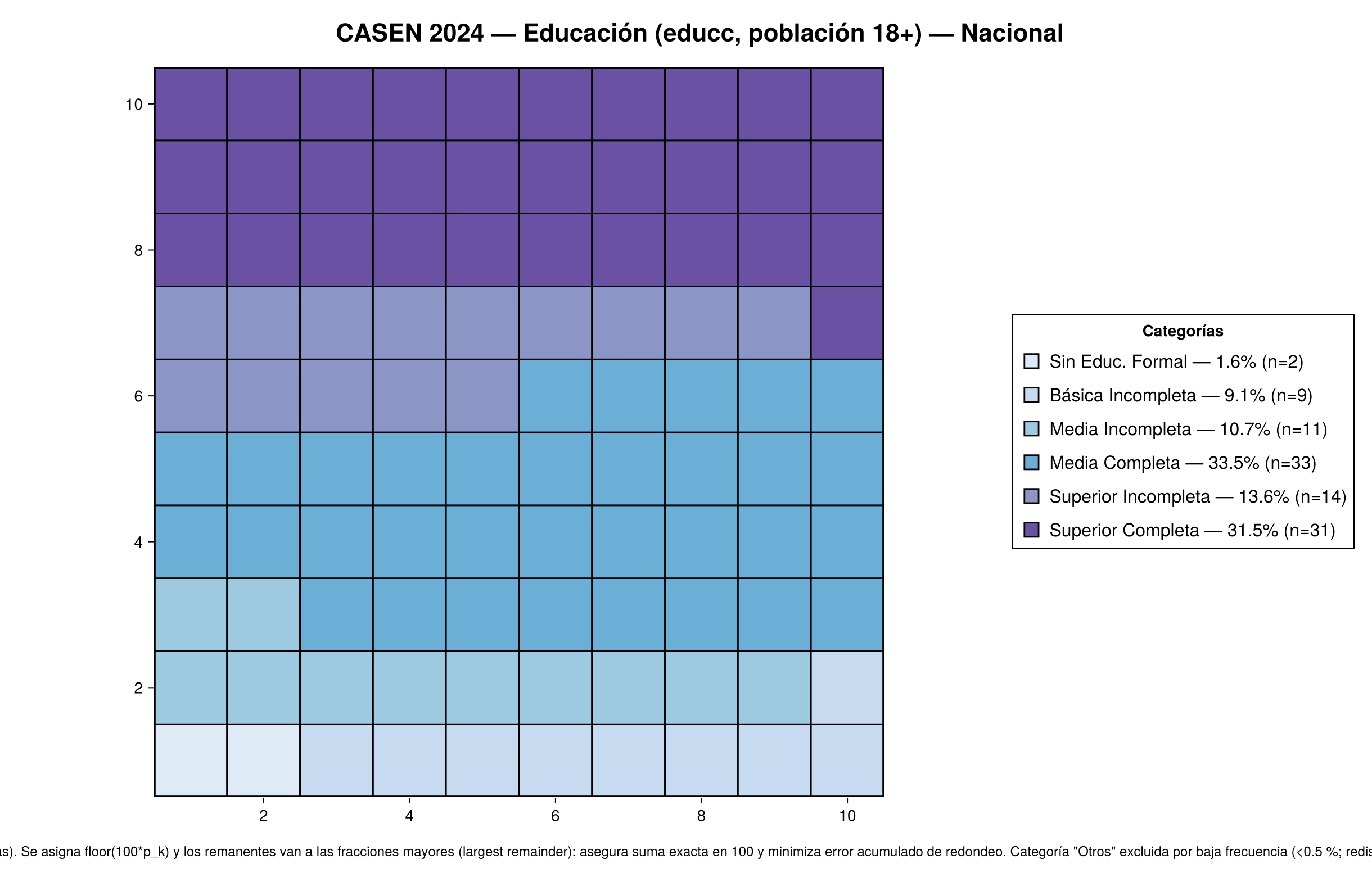

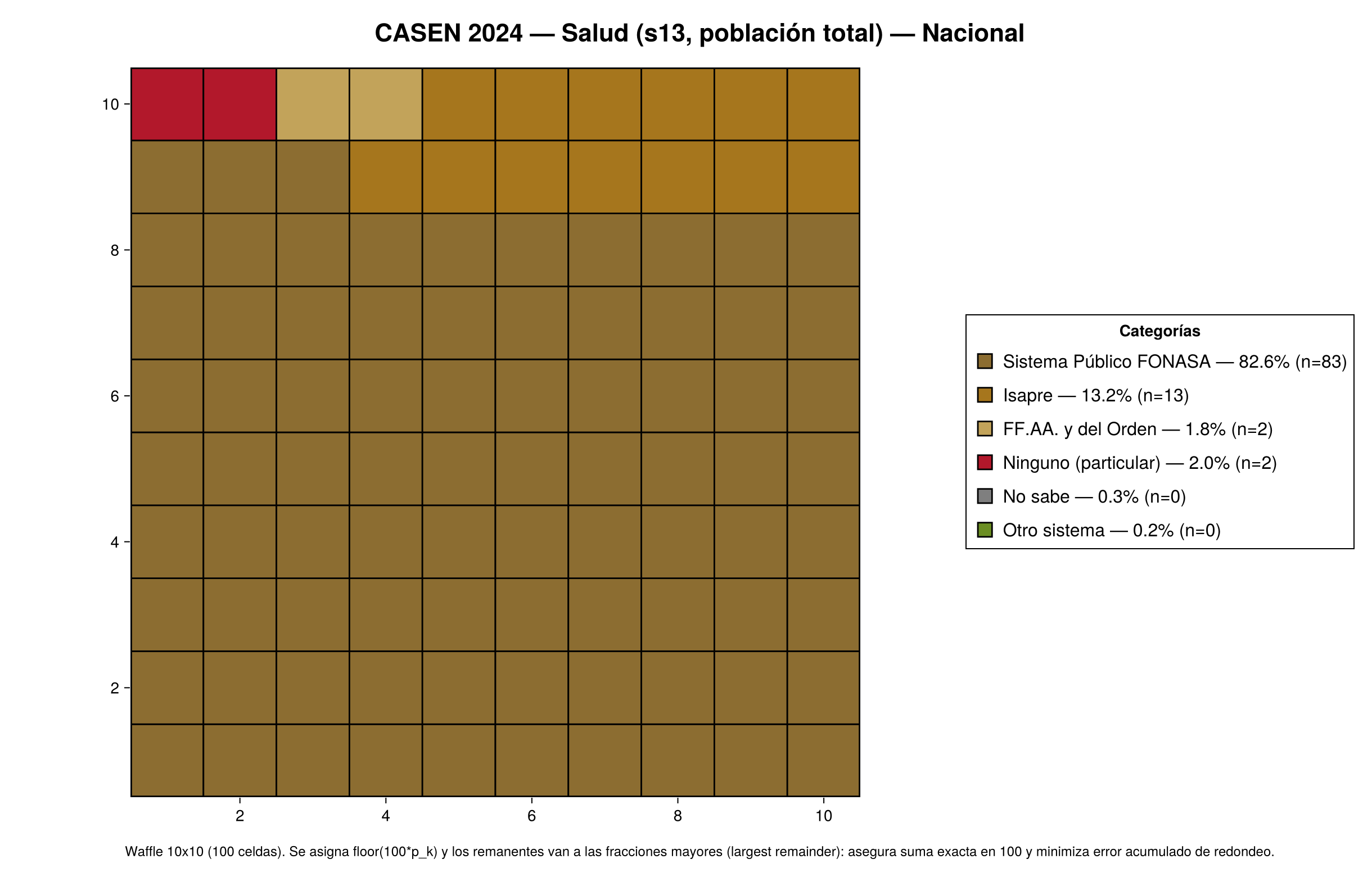

Charts 1–3 — National composition: education (population ≥18 years), health and poverty (total population). Source: CASEN 2024, own elaboration in Julia. Values are validated against BIDAT. Click to enlarge.

Regional gaps (Charts 4–6)

Each panel uses an axis fitted to the range of its own category (not a shared global scale), which makes it possible to visualize differences that flatten out if all categories share the same axis. The horizontal bars are 95% CIs computed by Taylor linearization. The hollow point (○) marks the national reference in each panel (with its CI).

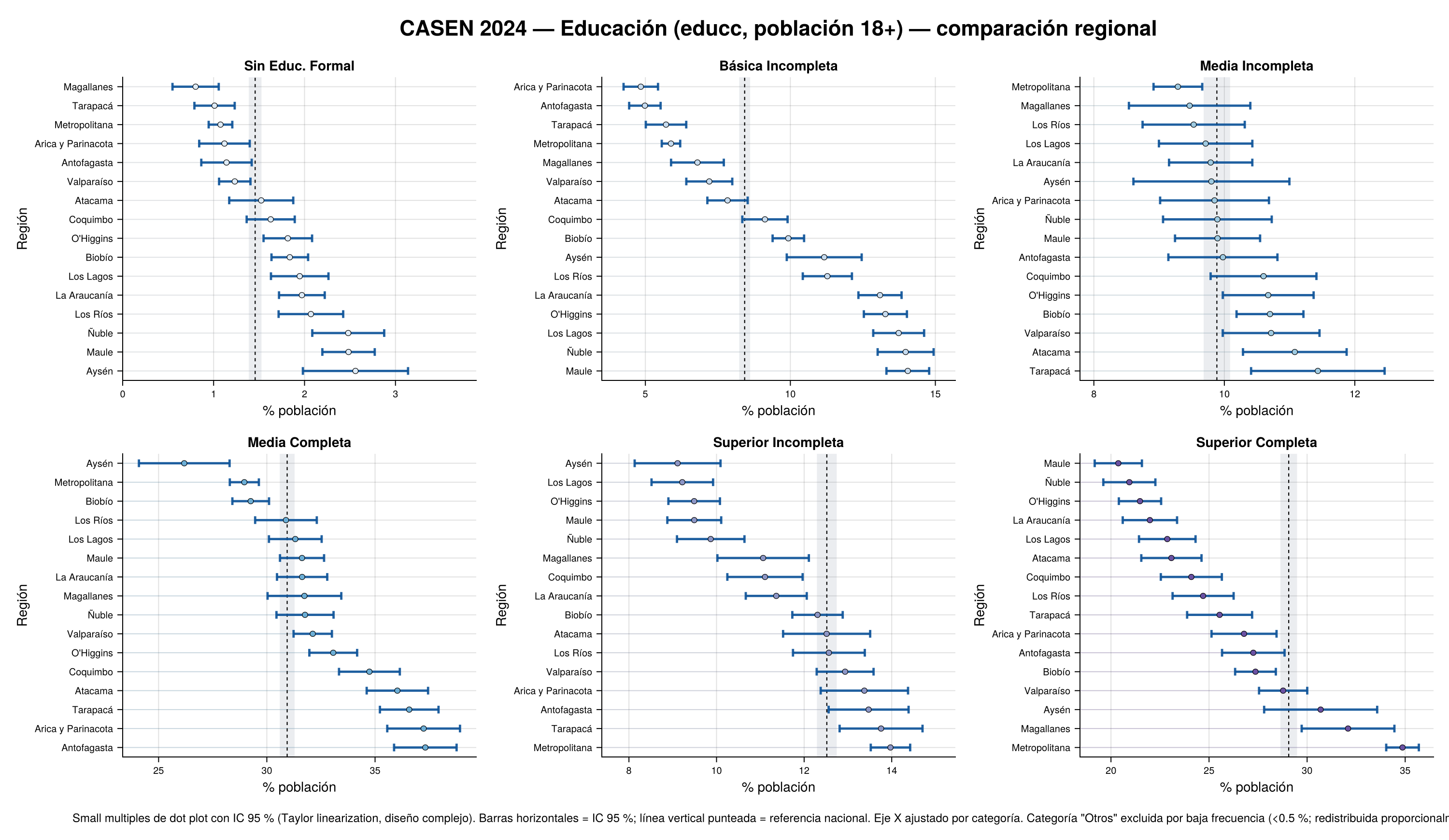

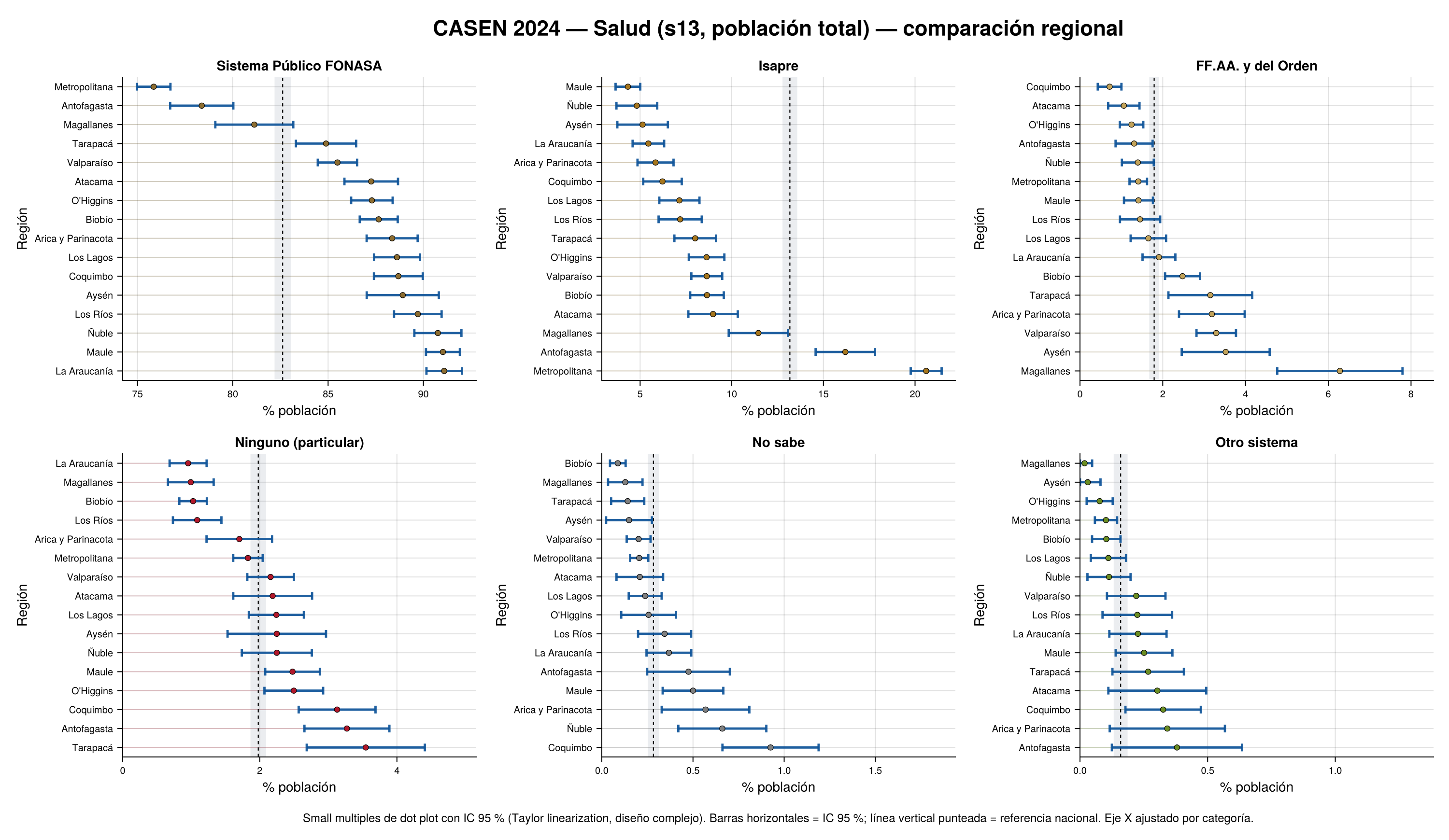

Charts 4–6 — Regional gaps with 95% CIs (Taylor linearization, complex design): education, health and poverty. Bars = 95% CI; hollow point (○) = national reference. Axis fitted per category. Click to enlarge.

Gaps with 95% CIs — all statistically robust

Table 4 — Regional gaps with 95% CIs by Taylor linearization (CASEN 2024)

Dimension	Category	Gap (pp)	Maximum	95% CI	Minimum	95% CI
Poverty	Non-poverty	18.6 pp	Magallanes 90.0%	[88.5%, 91.5%]	La Araucanía 71.4%	[69.8%, 73.0%]
Health	Isapre	16.3 pp	Metropolitana 20.6%	[19.8%, 21.5%]	Maule 4.3%	[3.7%, 5.0%]
Health	FONASA	15.2 pp	La Araucanía 91.1%	[90.2%, 92.0%]	Metropolitana 75.9%	[75.0%, 76.7%]
Education	Complete higher education	14.5 pp	Metropolitana 34.9%	[34.0%, 35.7%]	Maule 20.4%	[19.2%, 21.6%]
Poverty	Extreme poverty	8.8 pp	La Araucanía 13.0%	[11.8%, 14.1%]	Magallanes 4.2%	[3.1%, 5.2%]

In every case the CIs do not overlap: the gaps are statistically significant at 5%. CIs computed by Taylor linearization over the complex design (strata, PSU/UPM, expr).

---

Closing: three questions for those who use the survey

If you use CASEN 2024 for territorial characterization or other uses where regional-level variables matter, think twice before using a point estimate (without its confidence interval):

1. Are your results validated against BIDAT and do they carry design-based CIs? A difference greater than 1×10⁻⁵ pp from the official tables is not technical: it is a process issue. And without complex-design CIs, an 8 pp gap can look like evidence when it is noise in small regions.
2. Are you using the correct expansion factor? expr is the right one for regions; expc for municipalities. They are not interchangeable, and using the wrong one biases coverage estimates.
3. Is your analysis reproducible? A flow that cannot be audited cannot be defended before a technical counterpart, nor updated when CASEN 2026 is released.

The CIs incorporated here are complex-design (Taylor linearization), not simple asymptotic ones. They cover sampling variance but not non-response error or undercoverage. Causal inference between subpopulations requires additional design.
